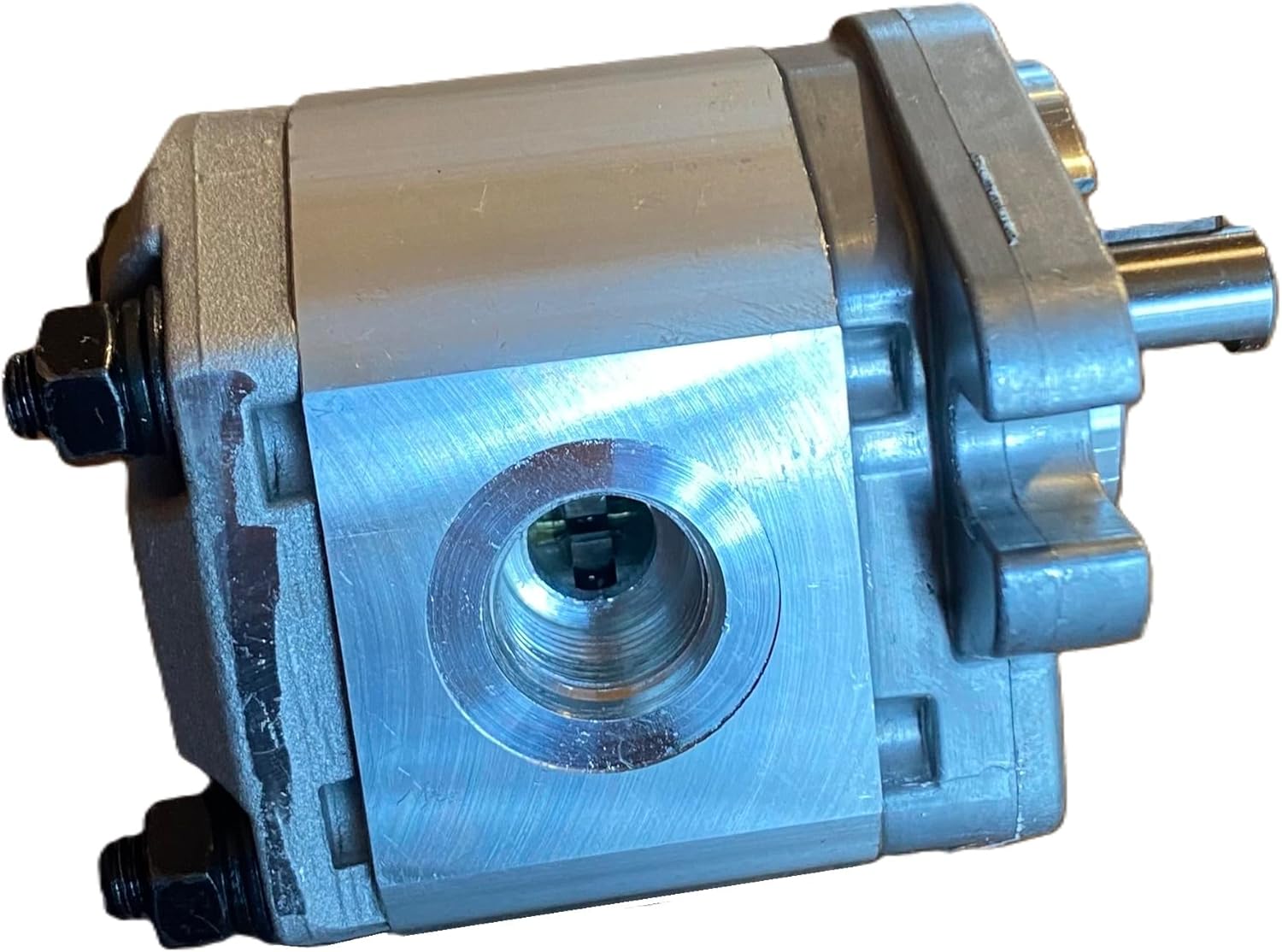

Hydraulic Gear Pump SAE AA Flange 3625psi PFEG series (Counter-Clockwise Rotation, 2.1cc/rev (0.128in3/rev.) 3.3 gpm at max. rpm)

Hydraulic gear pumps are driven by electric motors or engines to produce high pressure hydraulic fluid. This gear pumps is made to a standard mounting flange that can fit most applications with the same 3.25 inch mounting bolt width and 1/2" keyed shaft. Check all dimensions in the drawing with the images to confirm it fits your application. Proven high quality robust design successfully operating in many high volume applications. Used in construction, agricultural, mobile vehicles and industrial applications. Standard SAE AA 2- bolt flange mounts to many standard applications. Fluid Recommendation: SAE 10-30W (ISO VG 32 or 46 Hydraulic oil)

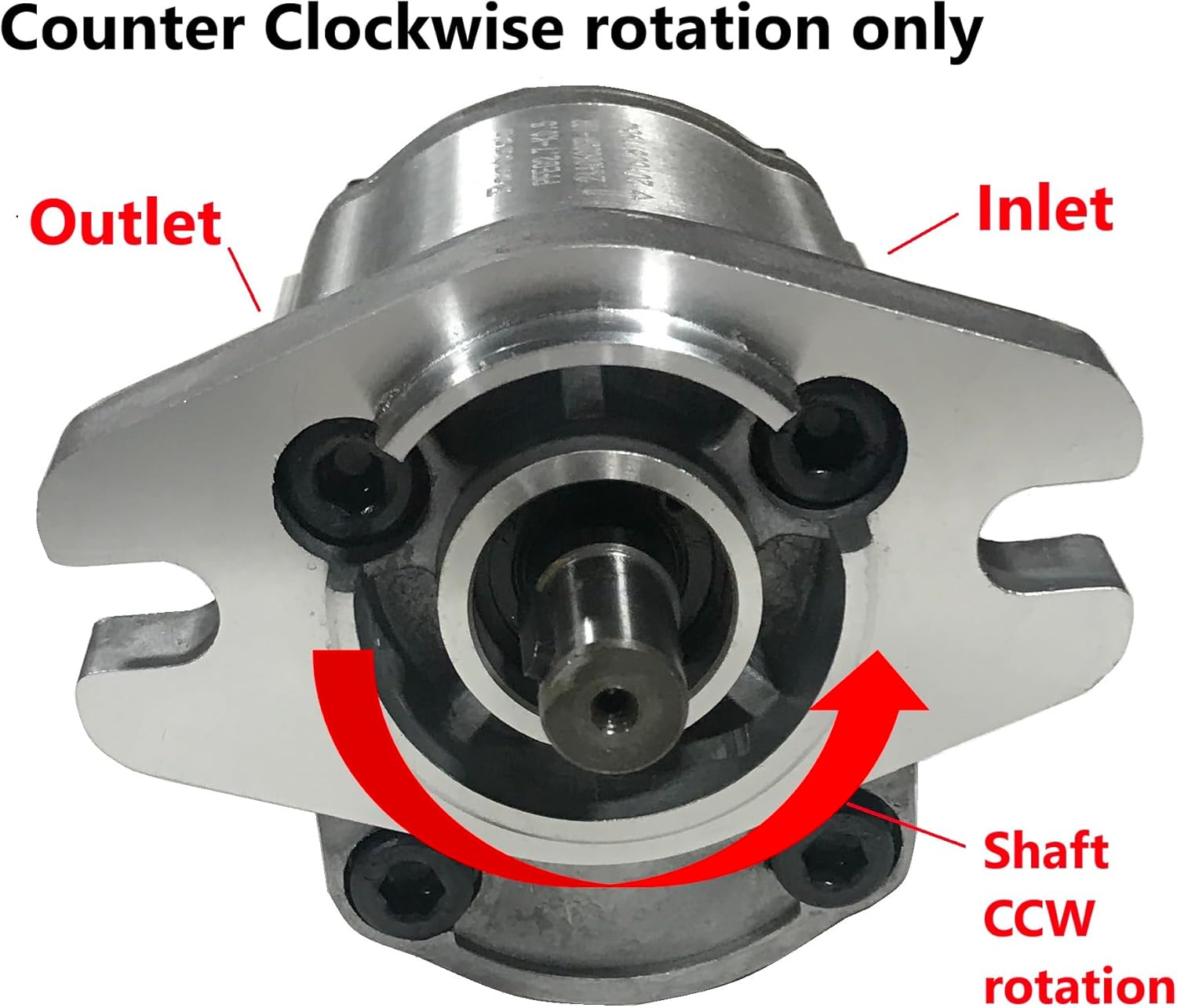

• IMPORTANT: MUST ROTATE SHAFT IN EITHER THE SELECTED CLOCKWISE OR COUNTERCLOCKWISE DIRECTION WHEN LOOKING AT THE SHAFT. IMPROPER ROTATION DIRECTION COULD LEAD TO SHAFT LEAKAGE AND SEAL FAILURE.
• SAE AA, 2 bolt mounting flange
• Up to 3625 psi continuous pressure
• Up to 6.3 gpm, dependent on the rpm and pump displacement selected
• 1/2" Keyed shaft
• Universal hydraulic pump with fixed output flow and standard SAE AA flange mounting. Can replace most hydraulic pump applications with the same pressure, mounting flange, shaft and cc/rev displacement requirements.
